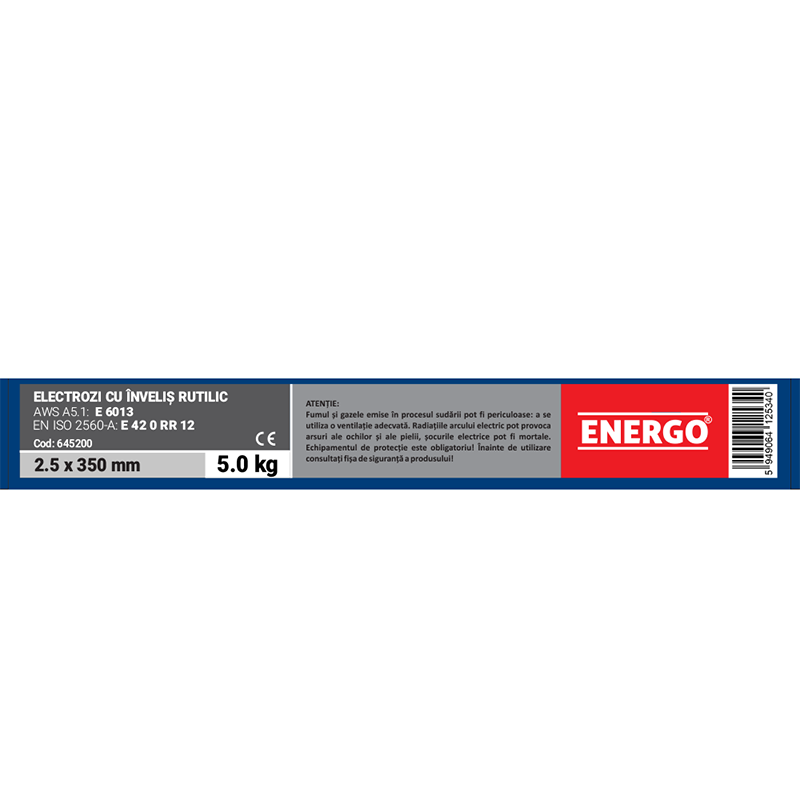

Electrozi rutilici AWS E6013 ENERGO, 2.5 x 350 mm, 1 cutie/5.0 kg

Name: Electrozi rutilici AWS E6013 ENERGO, 2.5 x 350 mm, 1 cutie/5.0 kg
Brand: ENERGO
SKU: 645200
Price: 108.91 RON
Availability: InStock

Cod: 645200

Pret de lista: 108,91 LEI

Pret fara TVA: 91,52 LEI

Descriere

Electrozi sudura ESE-R invelis-rutilic (AWS E6013), 2.5x350mm, ambalati in cutie 5.0 kg (~240 bucati).

Compozitie: Carbon C - 0.08%, Mangan Mn - 0.65%, Siliciu Si - 0.35%
Clasificare (standard) electrod conform SFA/AWS: E6013
Clasificare (standard) electrod conform EN/ISO/DIN: E 42 0 RR 1 2

Tip curent/polaritate electrod
AC curent alternativ
DC curent continuu / electrod borna ( + ) / DCEP
DC curent continuu / electrod borna ( - ) / DCEN

Norme (CE) certificari conformitate:
ABS 2, BV 2, DNV 2
LRS 2M, RINA 2
TL 2, CE
TUV, DB
SEPRO

Caracteristici suplimentare
Randament depunere material (kg material depus/kg electrozi) %: 0.51
Randament depunere material (kg material depus/kg electrozi): 1 kg material depus / 1.96 kg electrozi
Randament depunere material (kg material depus/buc electrozi): 1 kg material depus / 93 buc electrozi
Curent (amperaj) recomandat: 65 - 90 A

Aplicatii
Confectii metalice uz general, supuse la solicitari reduse ca intensitate (40) (44)
Confectii metalice uz general folosite in conditii climaterice temperate (40) (44)
Asamblarea retelelor din conducte metalice pentru presiuni reduse (40) (44)
Preasamblare (pozitionare) piese (40) (44)
Asamblarea tablelor din otel-carbon subtiri (40) (44)
